Inputs
| Field | Description |
|---|---|
| Prime Mover RPM | Motor/engine speed |
| Gear Reducer Ratio | Gearbox reduction ratio |
| Gear Reducer Sheave Diameter (in) | Gearbox input sheave size |
| Center Distance Of Shafts (in) | Distance between motor and gearbox shafts |
| SPM | Target strokes per minute |
Outputs
Summary
| Output | Description |
|---|---|
| Prime Mover Sheave Diameter (in) | Required motor sheave size |
| Belt Length | Required V-belt length (inches) |
Sheave Diameter Table

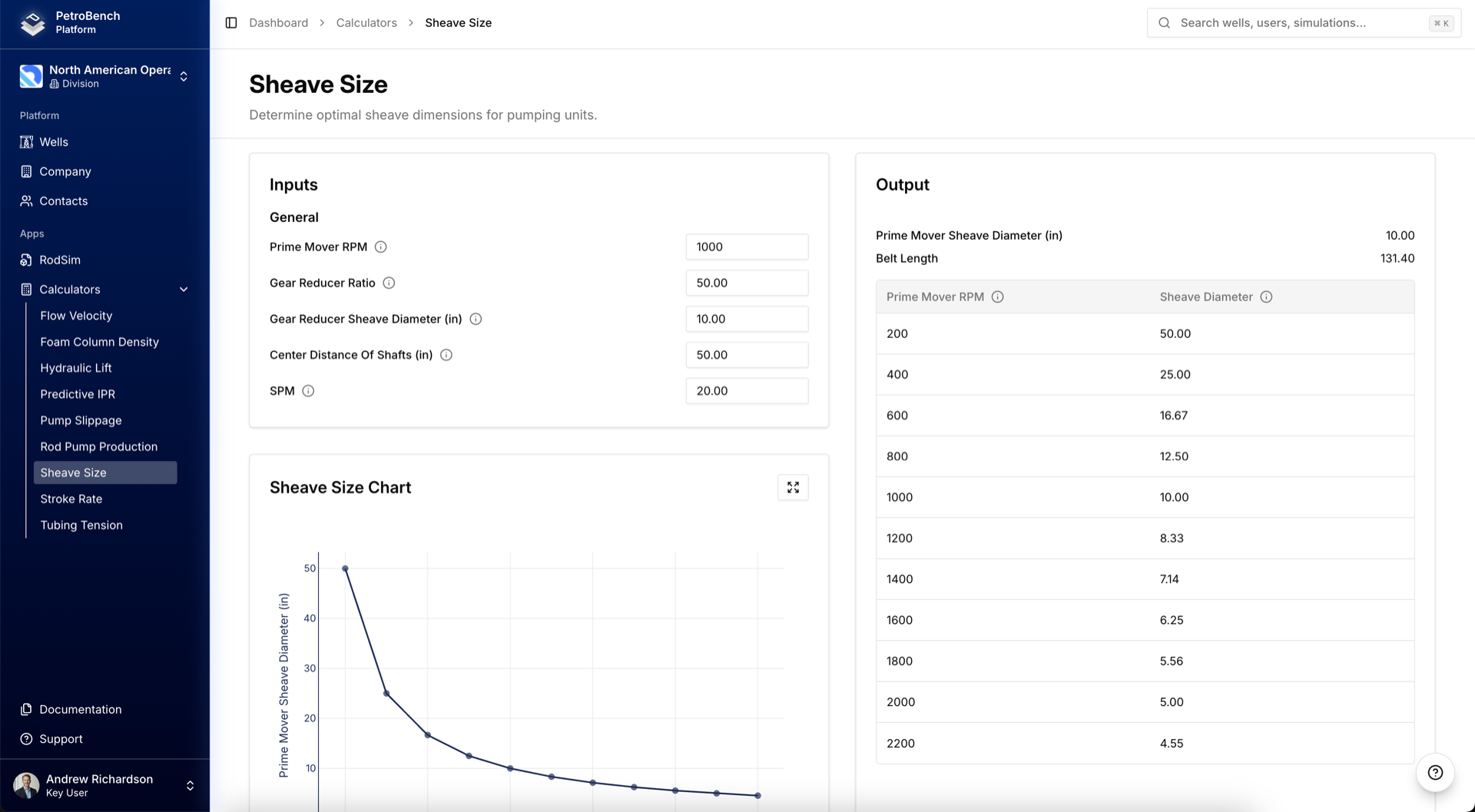

Shows required sheave diameter at various prime mover RPM values, helping identify practical sheave sizes for different motor speeds.Sheave Size Chart
Visual graph showing Prime Mover Sheave Diameter vs. Prime Mover RPM, illustrating how sheave size requirements change with motor speed.Use Cases
- Select motor sheave for target SPM
- Evaluate motor speed options
- Order correct belt length
- Plan sheave changes for production adjustments
