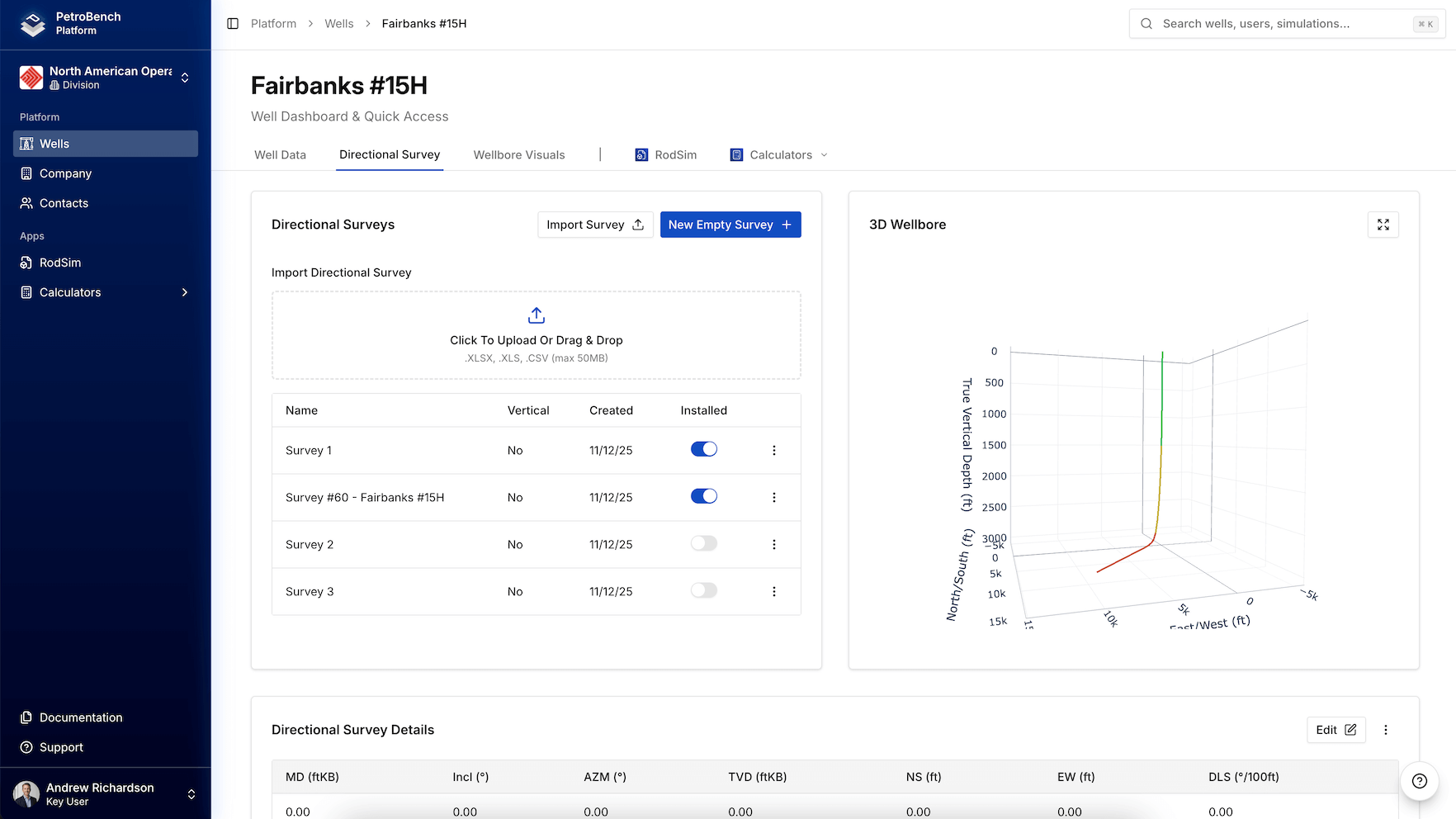

Directional Survey
Directional surveys define the 3D trajectory of your wellbore:
  • Measured Depth (MD) - Distance along the wellbore
  • Inclination - Angle from vertical (0° = vertical)
  • Azimuth - Compass direction (0° = North)
TVD, Dogleg Severity, Northing, and Easting are auto-calculated.

​
Primary vs. Backup

  • Primary - Active survey used for calculations
  • Backup - Historical surveys for reference
Only one survey can be primary per well.

​
Creating a Survey

  1. Go to Well Details > Directional Surveys
  2. Click Create New Survey
  3. Enter survey name and date
  4. Check Is Primary if this is the active survey

​
Adding Points

Click Add Point:
FieldRange
Measured DepthIncreasing values (ft)
Inclination0-90°
Azimuth0-360°
Enter points from shallowest to deepest (increasing MD).

​
Vertical Well Example

MDInclinationAzimuth
00°0°
[TD]0°0°

​
Importing Surveys

​
Supported Formats

  • Excel/CSV - .xlsx, .xls, .csv
  • RodStar - .rsdx, .rsvx
  • SRod - .inp6e, .inp7

​
Required Columns (Excel/CSV)

ColumnRecognized Headers
Measured DepthMD, Measured Depth, Depth, M.D.
InclinationInc, Incl, Inclination, Angle
AzimuthAz, Azim, Azimuth, Direction

​
Import Steps

  1. Go to Well Details > Directional Surveys
  2. Click Import Survey
  3. Upload your file
  4. Configure: Survey Name, Date, Set as Primary
  5. Review preview
  6. Click Import

​
File Requirements

  • CSV: Comma delimiter, UTF-8 encoding
  • Excel: Any sheet name (prefers “Survey” or “Directional”)
  • Units: Feet and degrees

​
3D Visualization

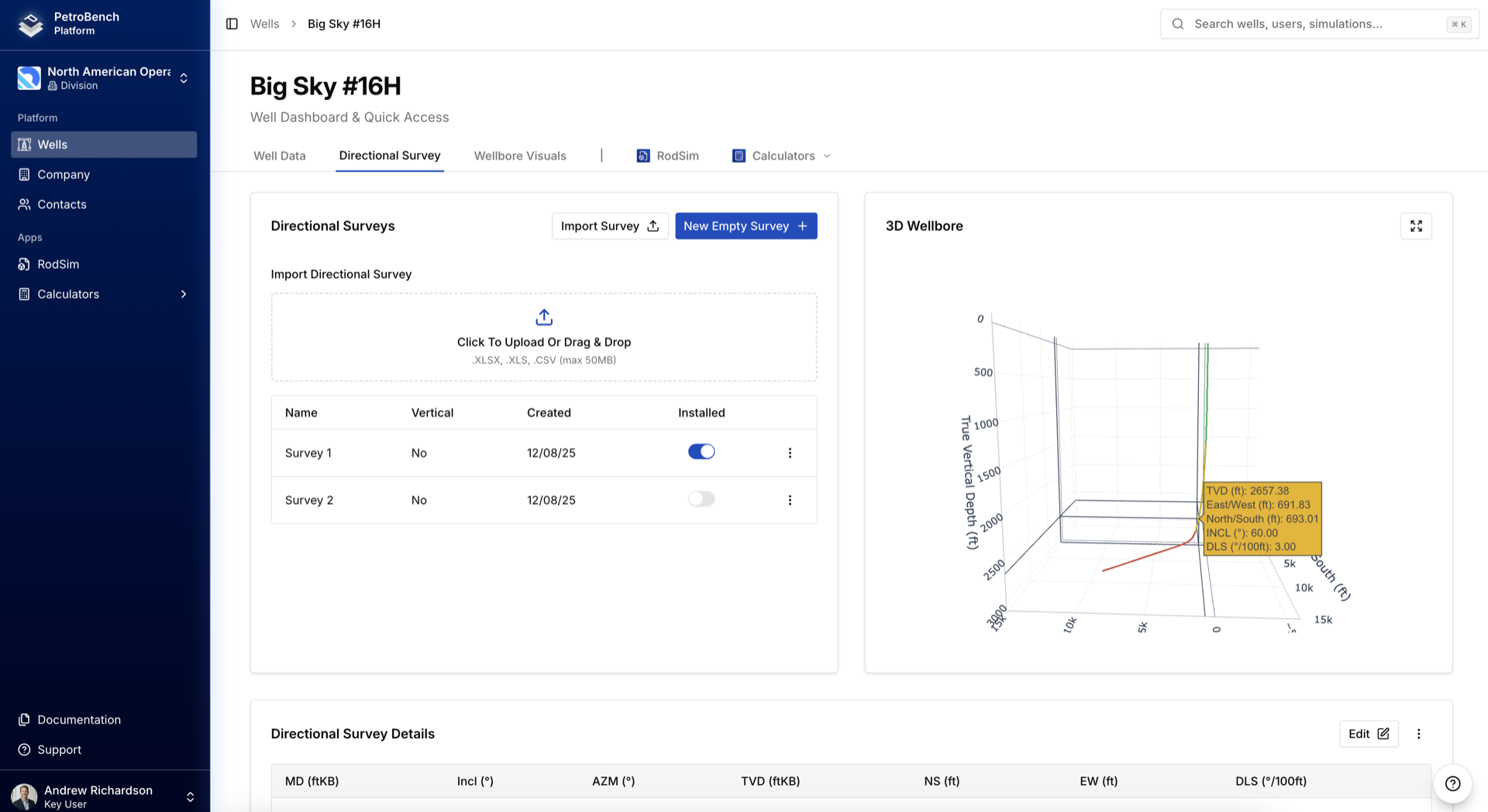

3D wellbore
PetroBench displays interactive 3D wellbore trajectories. Rotate, zoom, and pan to inspect the wellbore path.

​
Troubleshooting

Check that your file has recognizable headers and numeric data.
Sort your file by MD in ascending order before importing.
Use standard names: MD, Inclination, Azimuth.
